K8 Web Kit - Rest API

Method and urls:

Headers:

"Content-Type: application/json", "Authorization: Basic username:password"

Body:

{ "name1": "Klaus Eisert", "project": "K8 Web Kit" }

A body is necessary for the methods: POST and PATCH.

Supported methods:

• GET
• POST
• PATCH
• DELETE

Endpoints

The datadefIDs are the endpoints.

Authorization

The Authorization type is Basic Authorization with:

• username
• password

More authorization conditions:

• only active users are supported
• config/_init.php:
  • domain_restroles: only user with the defined roles are allowed to send REST requests
• 3 failed login attemps in 1 hour are allowed, the failed attemps with IP are saved in the table k8fail2ban

HTTP-Status: 200,201,400,... Response:

{ "message": "created" }

The content of the response depends on request method and API service.

Exmaples for HTTP status:

• 200: OK
• 201: creatd
• 400: bad request
• 403: forbidden
• ... more

Folder: restapi

index.php

index.php has access to the database and data definitions. It checks:

• credencials
• request method
• endpoints (datadefID)

It sends the response.

.htaccess:

<IfModule mod_rewrite.c> RewriteEngine On RewriteCond %{REQUEST_URI} !^/restapi/index.php$ RewriteRule ^restapi(/.*)?$ /restapi/index.php [L] </IfModule>

The .htaccess redirects all REST API requests to the file restapi/index.php

config/_init.php

$GLOBALS['domain_restroles']=[2,105];

A registered user needs the roles: 2 or 105. You need your own installation of K8 Web Kit and establish your own REST API.

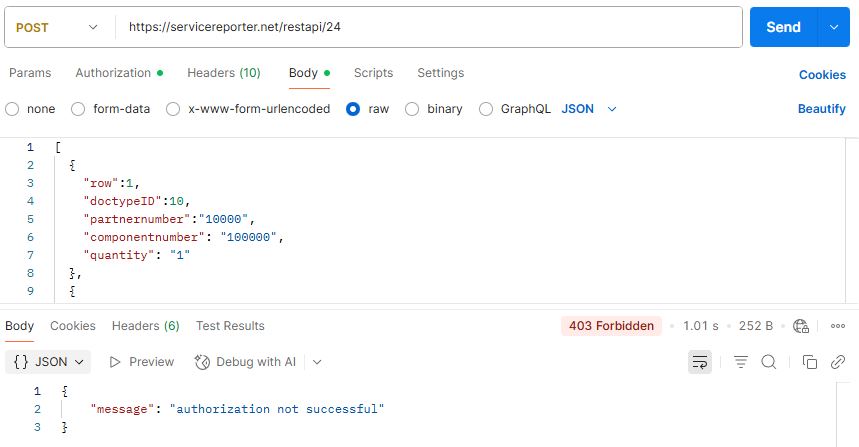

postman.com offers a comfortable playground for checking out API services. You can create your own workspaces. Enter your request, test and save them.

Visit:

• postman.com

PHP, request with curl:

$method="GET"; $body=""; $url="https://k8webkit.com/restapi/excustomer"; $ch = curl_init($url); curl_setopt($ch, CURLOPT_RETURNTRANSFER, true); switch ($method){ case "POST": curl_setopt($ch, CURLOPT_POST, true); // sets method to POST break; case "GET": // default break; default: curl_setopt($ch, CURLOPT_CUSTOMREQUEST, $method); break; } curl_setopt($ch, CURLOPT_HTTPHEADER,[ "Content-Type: application/json", "Authorization: Basic username:password" ]); if(!gbnull($body))curl_setopt($ch, CURLOPT_POSTFIELDS, $body); $result['response']=curl_exec($ch); if (curl_errno($ch)) { $result['error']=curl_error($ch); }else{ $result['bok']=true; } $result['http_status'] = curl_getinfo($ch, CURLINFO_HTTP_CODE); curl_close($ch);

Request

• method
• url
• header
• body

Response

• http_status
• response
  • header
  • body

The credencials are in the header. So the request is done in the backend to hide the credentials.

PHP, request with the connector object:

$result=array("bok"=>false,"error"=>""); $payload=getfromArray($_REQUEST,"payload"); $connector=getfromArray($payload,"connector"); $method=getfromArray($payload,"curl_method",$GLOBALS['domain_connectors'][$connector]['method']); $url=$GLOBALS['domain_connectors'][$connector]['url']; $ch = curl_init($url); curl_setopt($ch, CURLOPT_RETURNTRANSFER, true); switch ($method){ case "POST": curl_setopt($ch, CURLOPT_POST, true); // sets method to POST break; case "GET": // default break; default: curl_setopt($ch, CURLOPT_CUSTOMREQUEST, $method); break; } curl_setopt($ch, CURLOPT_HTTPHEADER, $GLOBALS['domain_connectors'][$connector]['headers']); if(isset($payload['curl_body']) && !gbnull($payload['curl_body'])){ mylog($payload['curl_body'],2); curl_setopt($ch, CURLOPT_POSTFIELDS, $payload['curl_body']); } $result['response']=curl_exec($ch); if (curl_errno($ch)) { $result['error']=curl_error($ch); }else{ $result['bok']=true; } $result['http_status'] = curl_getinfo($ch, CURLINFO_HTTP_CODE); curl_close($ch);

Connector

The connector is defined in the config/_init.php. It contains url, credentials and header. The REQUEST contains the parameter:

• method
• url
• body

The variable result returns the request:

• http_status
• response
• error

Testing with K8 Web Kit (under construction):

• k8webrequests

JavaScript example for REST request

async function curl(options) { let el_form=options.el_form; let url=GLOBALS_hostpath+"masterdata/ProcessMethod.php?process_action=curl"; let curl_method=el_form.elements.namedItem('method').value let curl_body=el_form.elements.namedItem('body').value let curl_url=el_form.elements.namedItem('url').value let connector=el_form.elements.namedItem('connector').value let payload={ connector:connector, curl_url:curl_url, curl_method:curl_method, curl_body:curl_body, } const request = await fetch(url, { method: "POST", headers: { "Content-Type": "application/json" }, body: JSON.stringify({payload}) }); const resp = await request.json(); let response = {}; try{ response=JSON.parse(resp.response); } catch(e){ cancel=true; k8.message("error in columns","alert"); } console.log(resp); if(resp.bok){ //el_form.elements.namedItem('response').value=getfromArray(resp,'response'); let myjsonstr=JSON.stringify(response, null, " "); editor.setValue(myjsonstr); }else{ //el_form.elements.namedItem('response').value=getfromArray(resp,'error'); let myjsonstr=getfromArray(response,'error'); editor.setValue(myjsonstr); } el_form.elements.namedItem('httpstatus').value=getfromArray(resp,'http_status',0); options.setDirty(true); }

Curl Method in php

The curl method needs to be executed in php, url:

• masterdata/ProcessMethod.php?process_action=curl

The curl parameters are set in the variable payload:

• connector
• method
• url
• body

The response is in the object resp. Properties are:

• bok
• error
• response
• http_status
